Certification:CE ROHS
Place of Origin:Zhejiang, China
Brand Name:TimeBest
Model Number:GT-12
Max. Current:15A
Max. Voltage:240V
D/C:220V~240V.15A/30A,50/60Hz Or 100V~-127V~,15A/30A,50/60Hz
Package:QTY:100 PCS/CTN
Type:timer module

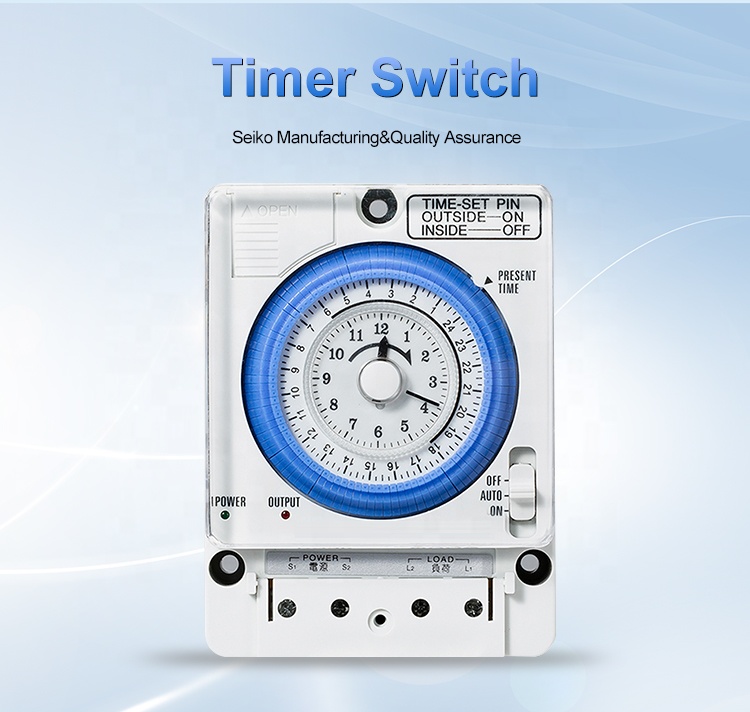

Product Name:Timer module
Minimum Setting Unit:15 Minutes
Full time range:24 Hours
Certifications:CE ROHS
Pins:4/5 pins

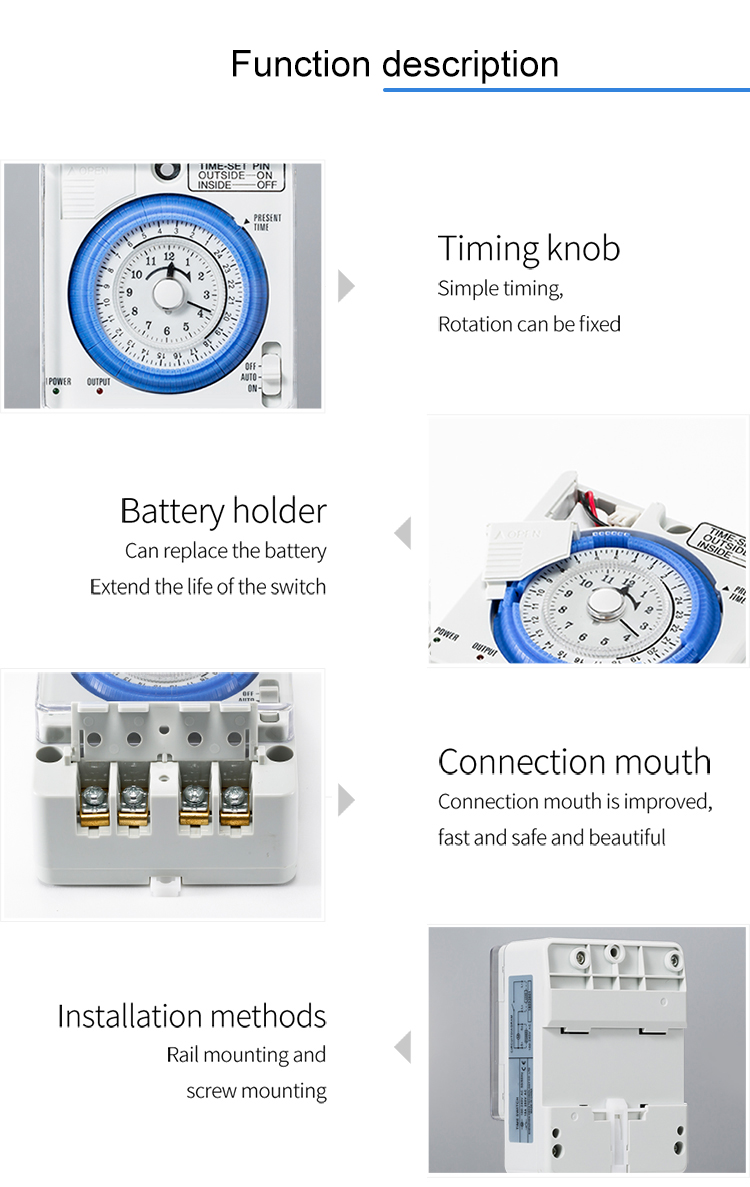

Switch:with ON/ OFF button
Color:White Body

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:712px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:712px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:233px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{text-align:center}#detail_decorate_root .magic-7{min-height:18px;padding:5px 10px;width:451px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:232px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:451px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:233px;box-sizing:content-box}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:1187px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:1187px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:362px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:362px}#detail_decorate_root .magic-15{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-16{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-17{margin-bottom:0}#detail_decorate_root .magic-18{position:relative;width:100%}#detail_decorate_root .magic-19{vertical-align:top}#detail_decorate_root .magic-20{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-21{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-22{padding:0;margin:0;white-space:pre-wrap;font-size:14px}

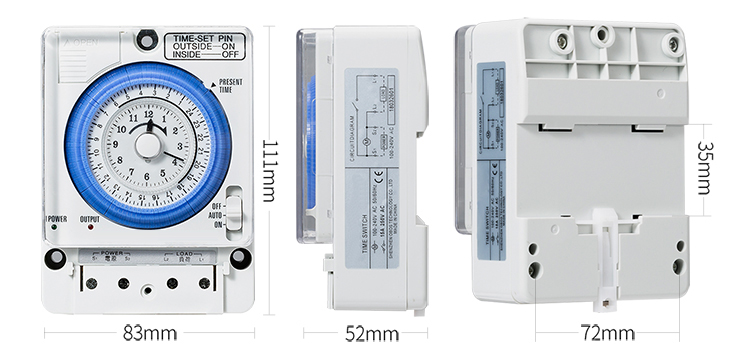

Specification TypeGT-12Working Voltage100, 110, 115, 120, 127 VAC 220, 230, 240 VACResistance Load Switch Capacity30A 15APower Consumption<1W <2WVoltage Range85~110%Power Source Frequency50/60HZCompensation for Interrupion300 Hours (Chromium Battery)Control Electrical Life105 TimesMechanical Life107 TimesDriving ModeQuartz Motor TypeAction Number96 OperationsTiming Control Range24 HoursAverage Error<2s/24h at 20℃Minimum Setting Unit15 Minutes/UnitMinimum Setting Interval15 MinutesTemperature-20℃ ~ +60℃Relative Humidity<90%Weight234gDimensions112mm * 83mm * 52mmInstallationDin Rail 35mm & Panel & Screw FixationHousing MaterialPC Material, Proof Flame

Hot Sell

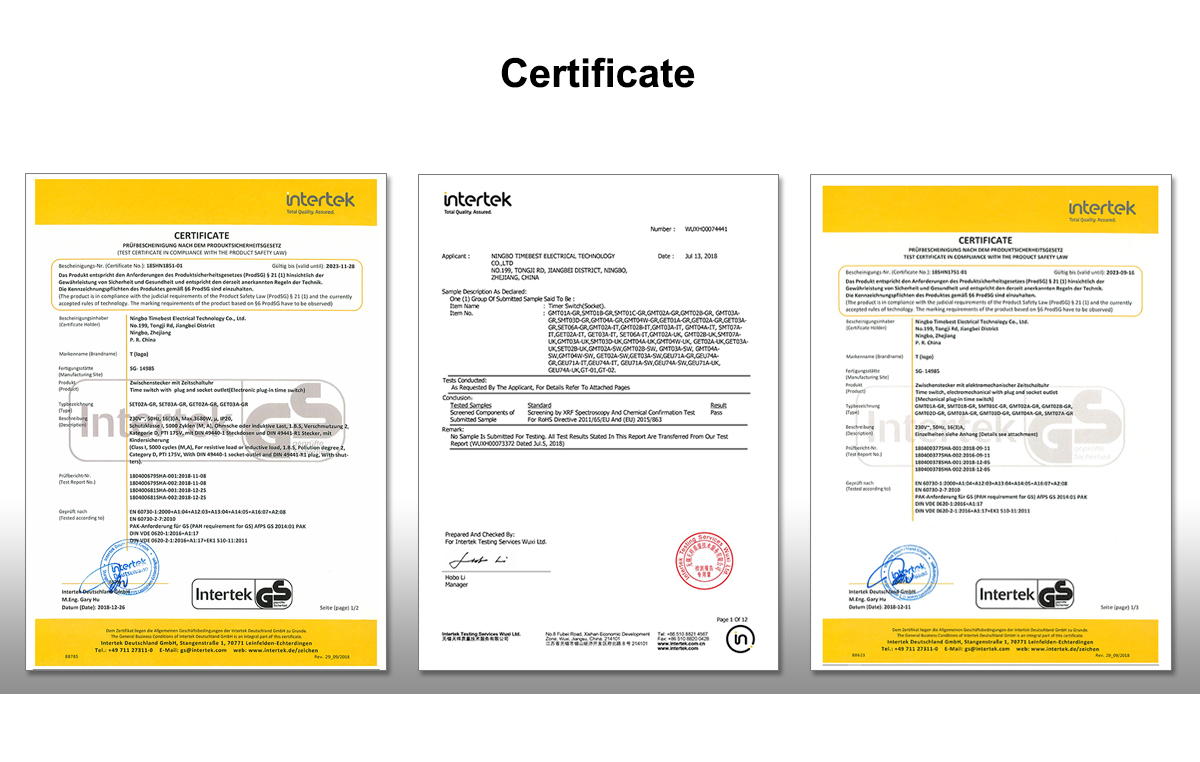

FAQ 1. What’s your payment term? We accept T/T, L/C, Western Union, Cash as your convenience. 2. How can I get a sample to check thequality of your product? We can prepare a free sample for you to check the quality. You can use your own express account or prepayfor us if you don’t have. 3. What’s the delivery time for mass production? Usually it would take 35 days for production aftergetting your deposit and confirming the packing files. 4. What kind of product quality your factory offer? All goods will beinspected before shipment. We offer most competitive price with best quality and 12 months after sales service. 5. What kind ofcertificate you have? Our company already achieved ISO and BSCI, and we have CE, ROHS, GS, TUV and VDE for products.
